Huawei HG 8546M XPON Fiber Optic WiFi Router Used With Adapter

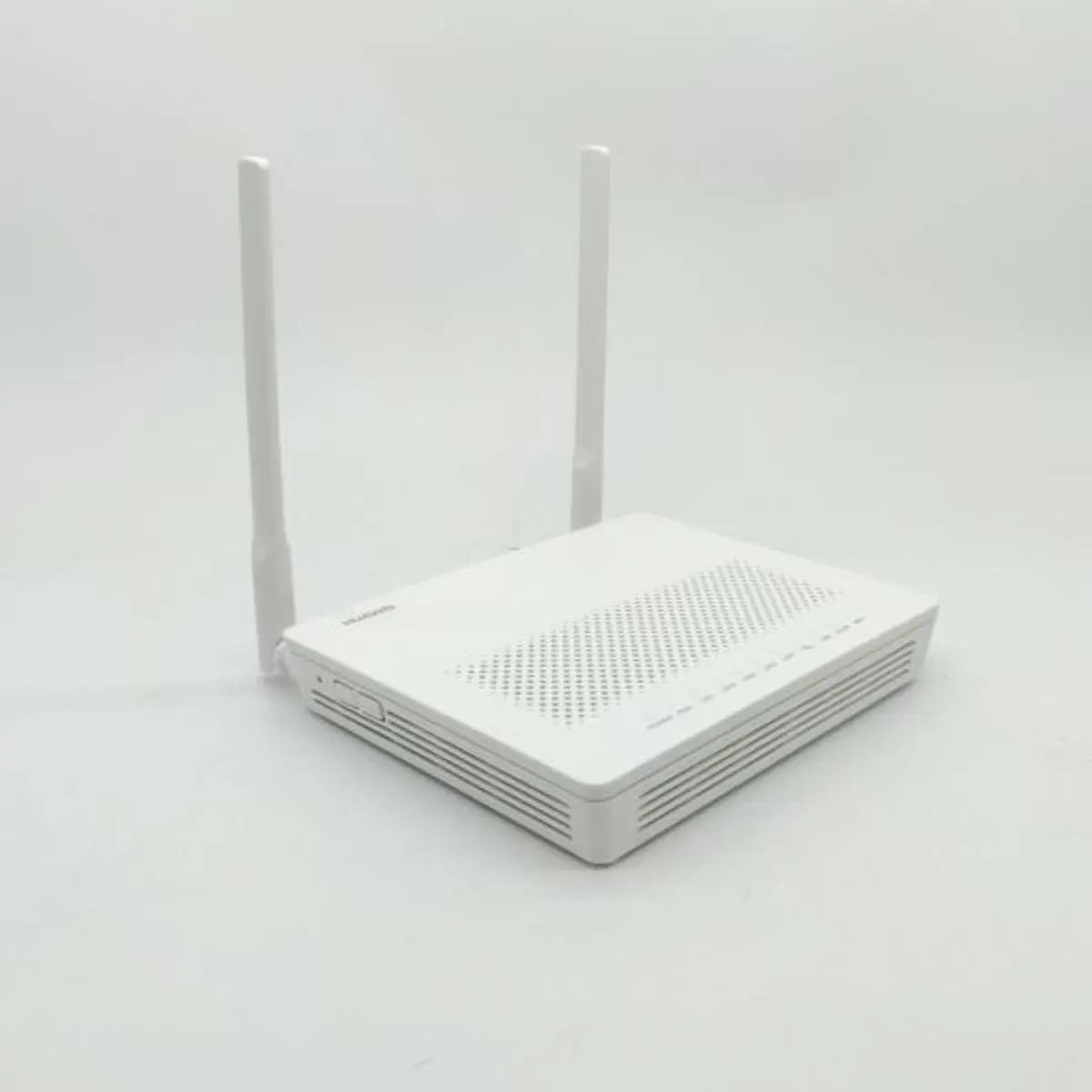

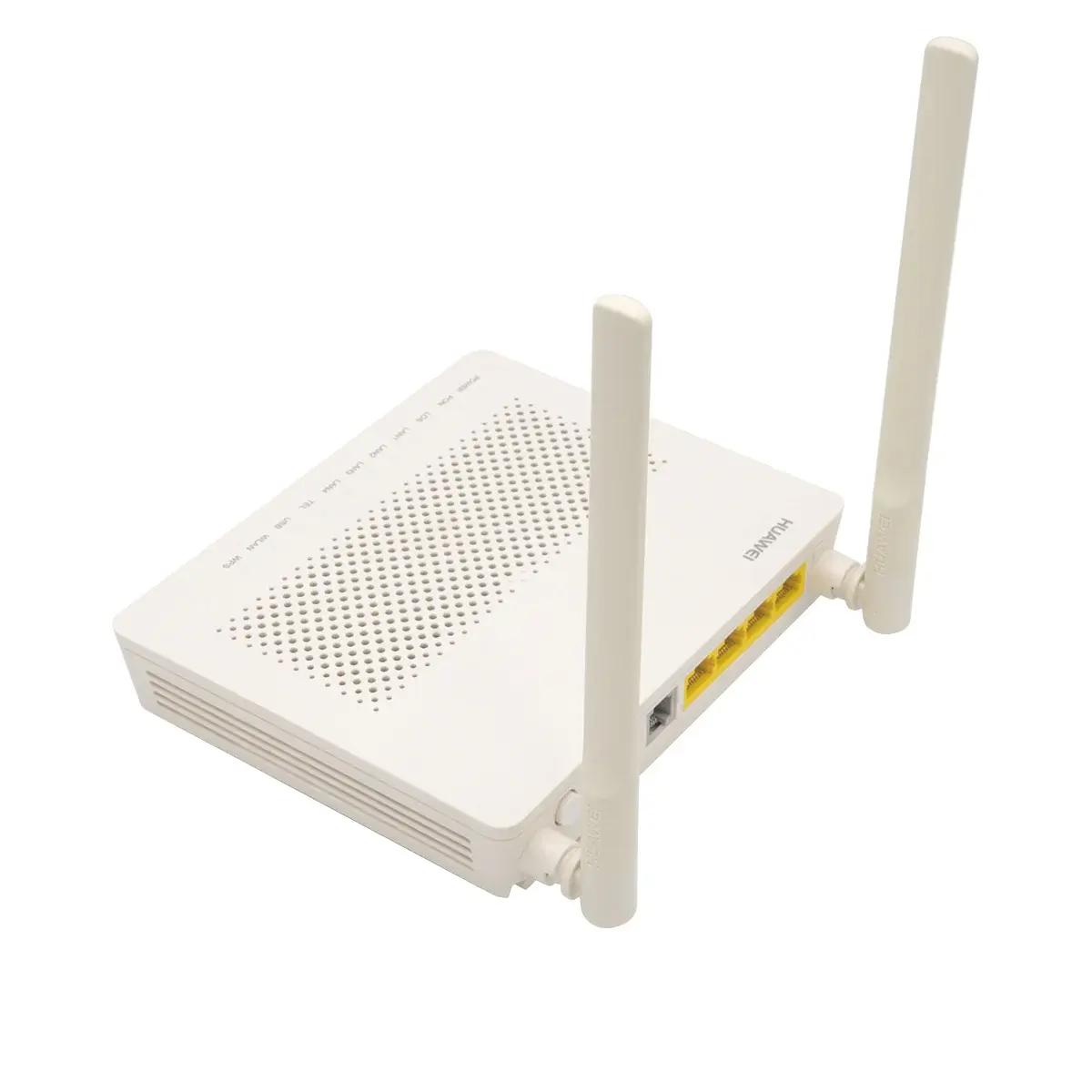

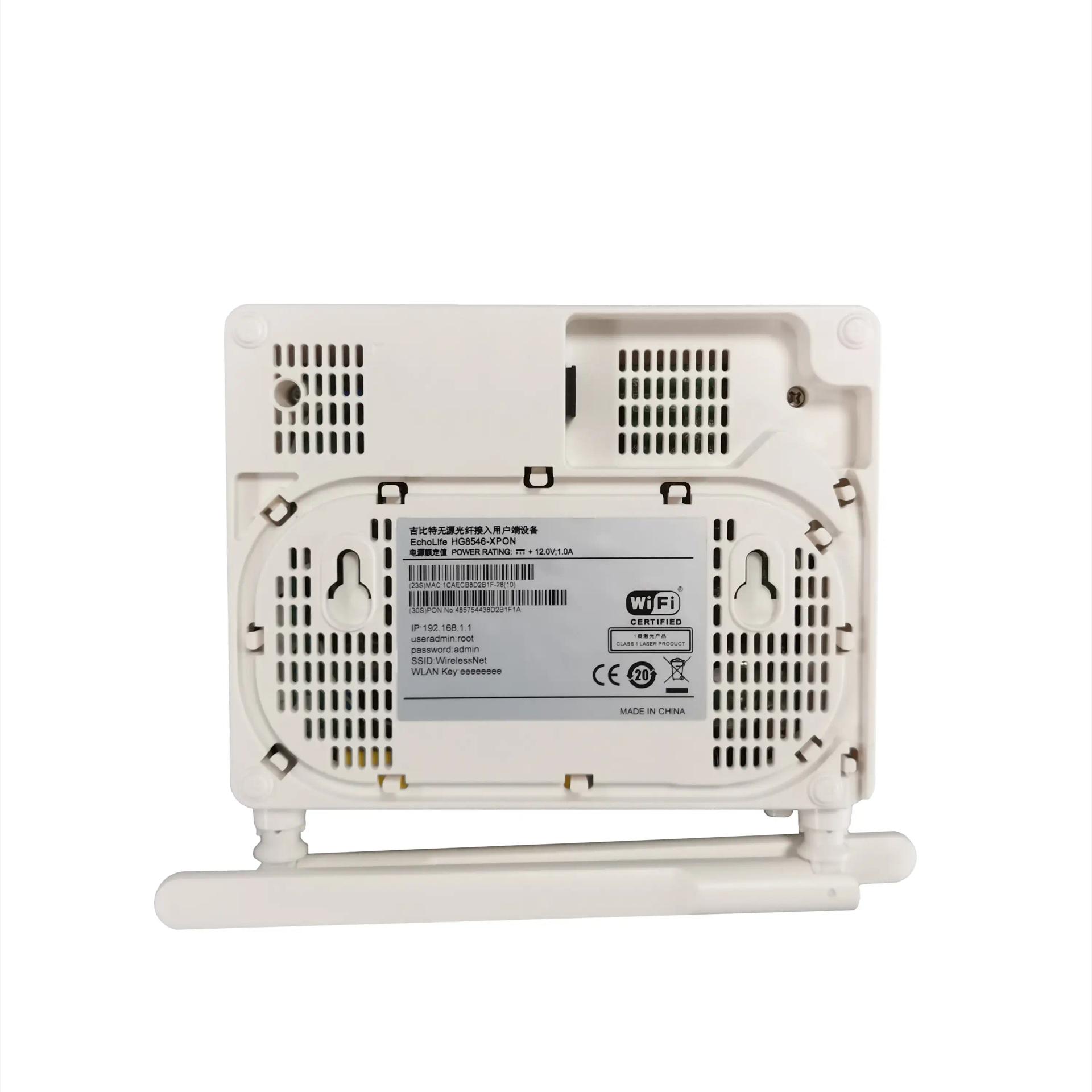

Huawei HG8546M XPON FIBER OPTIC WIFI ROUTER

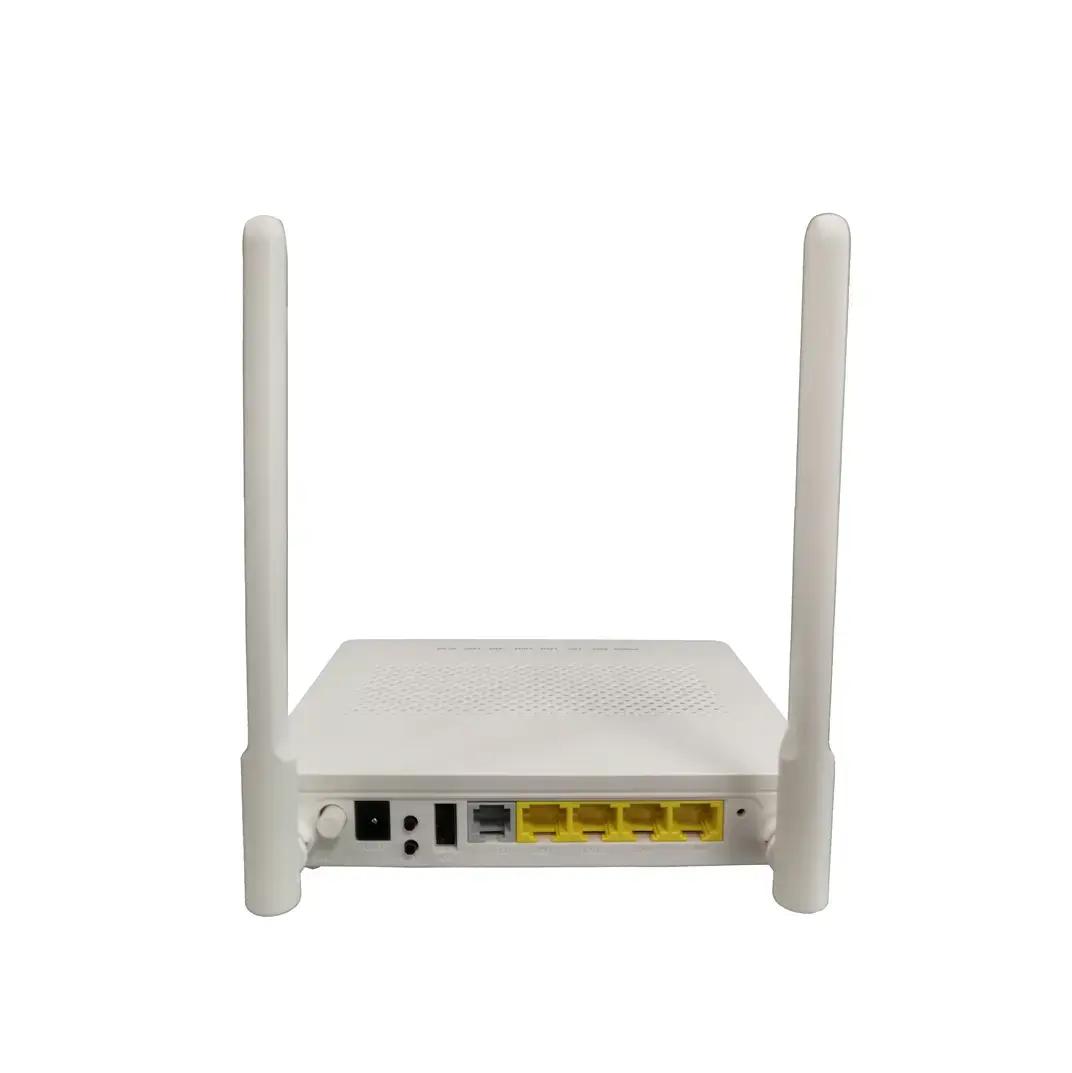

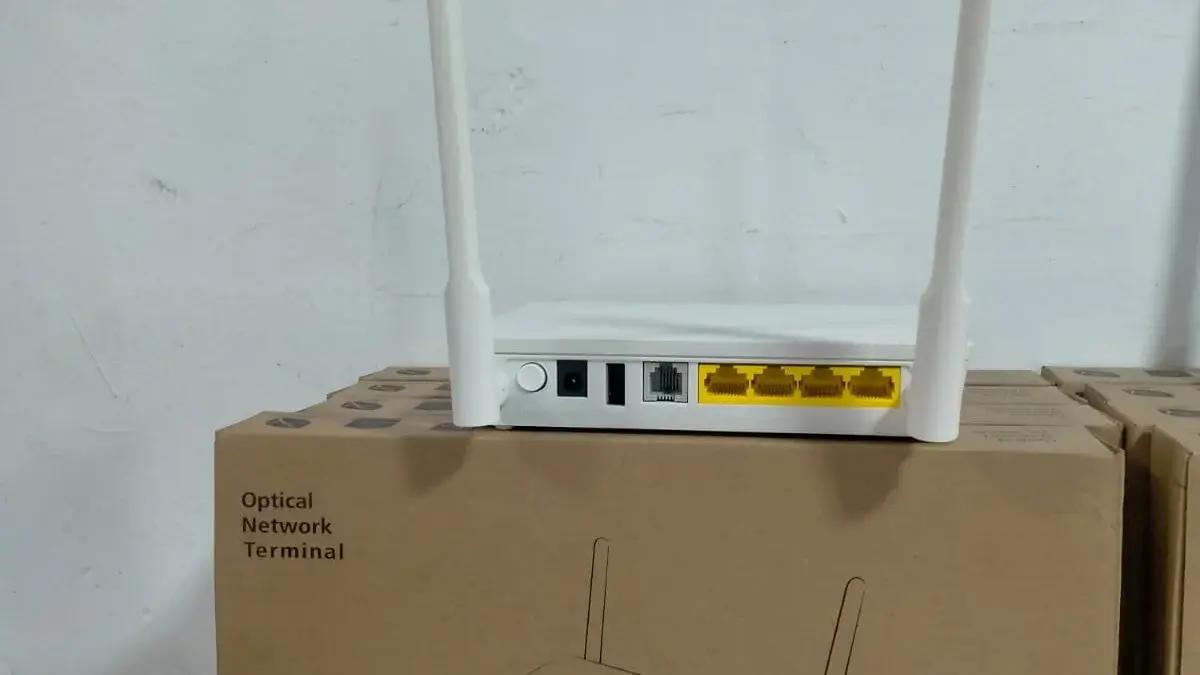

The Huawei HG8546M, Optical Network Terminal (ONT), is a high-end residential gateway in the Huawei FTTH solution. By using XPON SC/UPC technology, access to ultra-wideband Internet is provided to home and SOHO users. HG8546M has 1 POTS phone port, 1 GE Gigabit port + 3 FE fast Ethernet ports, and 1 USB port. It enables wireless WiFi transmission in the 2.4 GHz band, according to IEEE 802.11 b/g/n standards. Maximum wireless transmission capacity is 300 Mbps, the device has two external antennas with 2 dBi gain each. Therefore, H8546M provides an ideal terminal solution and support for future FTTH implementation. The offered product is perfect for homes and small businesses, providing reliable service. Included with the device is a DC 12V 1A power supply with a European plug (no adapters!).

Key features of Huawei EchoLife HG8546M Gpon Onu

• XPON ONT terminal
• XPON SC/UPC port
• 1 Gigabit Ethernet port
• 3 Fast Ethernet ports
• 1 USB port
• 1 phone port (POTS)
• possibility of WiFi network transmission in 2.4 GHz band
• maximum wireless transmission speed 300Mbps
• two external antennas with 2 dBi gain each

Technical specifications of Huawei Echolife HG8546M Gpon onu WiFi subscriber terminal

InterfacesGPON port1 SC/UPC XPON port Class B+

Sensitive reception: -27 dBm

Wavelength: US 1310nm, DS 1490nm

WBF

Flexible mapping between the GEM and TCONT ports

G.984.3

Double-sided FEC

SR-DBA and NSR-DBAEthernet port1 port 10/100/1000BASE-T (RJ45);

3 ports 10/100BASE-T (RJ45)

Transparent VLAN transmissionPOTS portMaximum REN: 4

G.711A/u, G.729a/b and G.722

T.30 / T.38 / G.711 fax

DTMF

Emergency calls (via SIP protocol)USB port1 USB 2.0 port

Possibility to create a network drive based on FTPWLANIEEE 802.11 b/g/n

2×2 MIMO

Antennas with 2 dBi gain

WMM

Many SSIDs

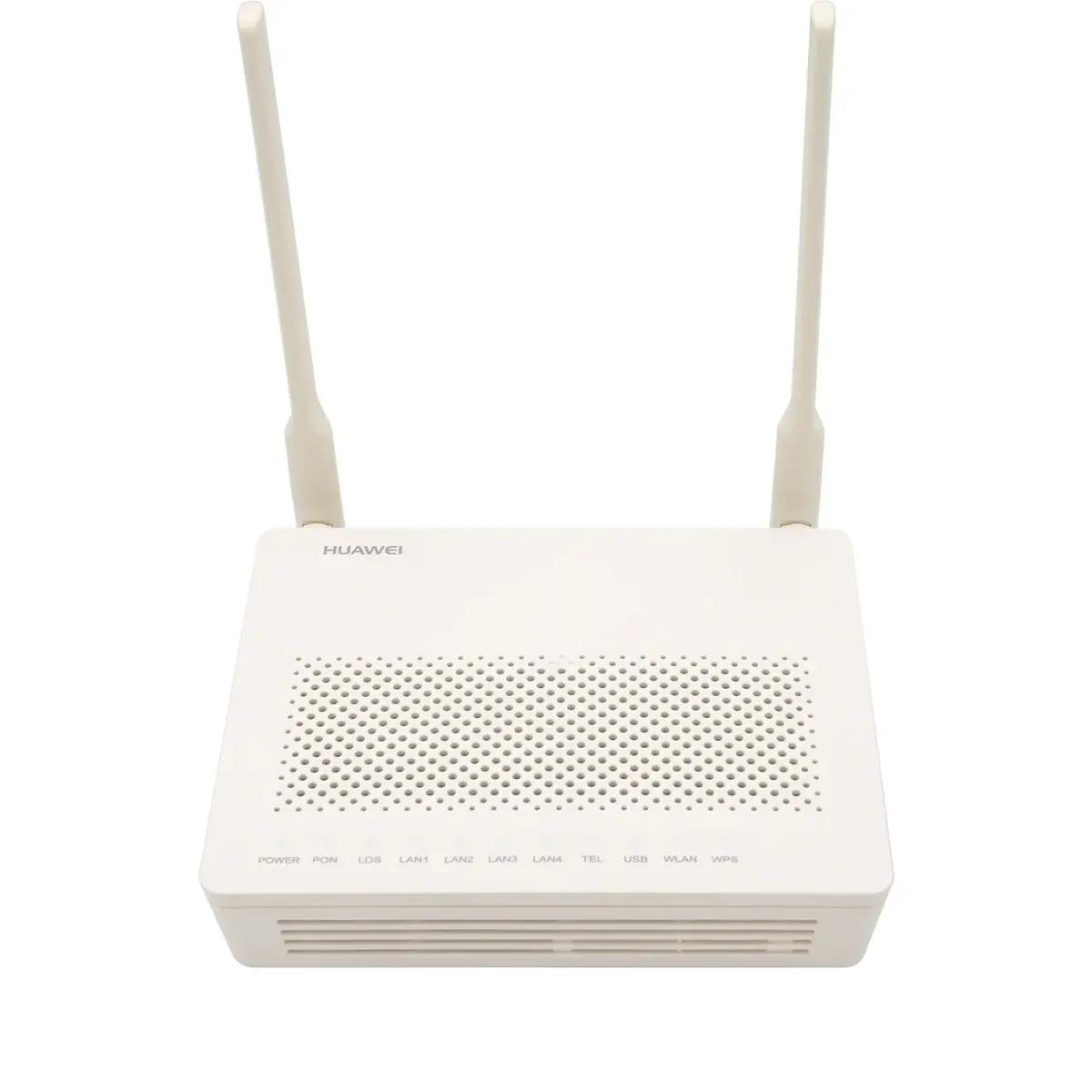

WPSConnection typeSC/UPCPhysical characteristicsDimensions176x138x28 mm (without antenna)Weight< 500 gPermissible operating temperature0 to 40 degrees CPermissible air humidity5%-95% RH non-condensingPower input100 – 240 V AC, 50-60 HzSystem power supply11 – 14 V DC, 1 AStatic power consumption4.5 WMaximum power consumption12 WLEDsPOWER / PON / FATE / LAN / TEL / USB / WLAN / WPSFunctionalityIntelligent connectionIntelligent WIFI coverage (support V300R015C10)

Adaptive SIP / H.248

Any port Any service

Parental control (support V300R015C10)Intelligent operation and maintenanceOMCI

Active passive ONT detection and isolation

Call up simulation / internal test, external

PPPoE / DHCP simulation test

WLAN simulationMulticastIGMP v2 / v3 snooping

IGMP v2 proxy server

IGMP v3 proxy server (support V300R015C10)

MLD v1 / v2 snooping

WIFI provides multicast servicesQoSEthernet port speed limit

Priority 802.1

SP/YYYY / SP + YYYYY

Limit on packet transmission speedO & MOMCI / Web UI / TR069

Double backup and restore softwareSecuritySPI firewall

Anti-DoS attack

MAC / IP / URL filtering
